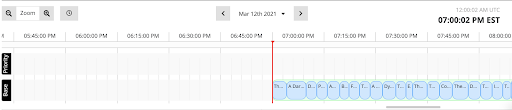

The Timeline view automatically loads to the current date, with the current time centered in your view. The default Zoom level allows you to view five hours in the past and five hours in the future, with hash marks appearing in 15-minute increments.

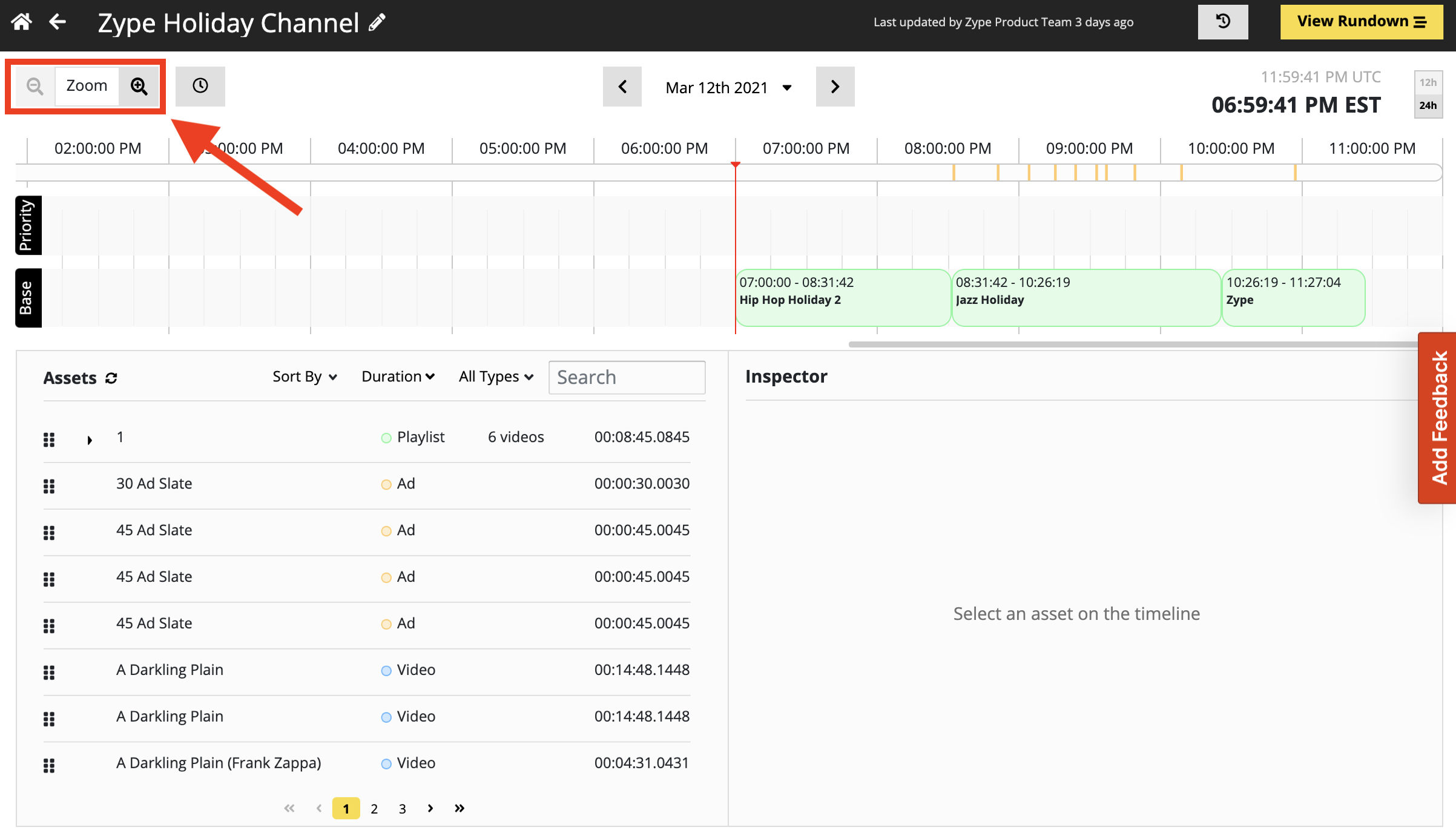

You can Zoom in to see more detail by selecting the “Zoom in” button in the top left corner of the page. You can Zoom out by selecting the “Zoom out” button in the top left corner of the page.


While the default view shows the Timeline in 15-minute increments, we also support 5-minute, 3-minute, and 1-minute increments to meet your programming needs. See the below options for zoom granularity.

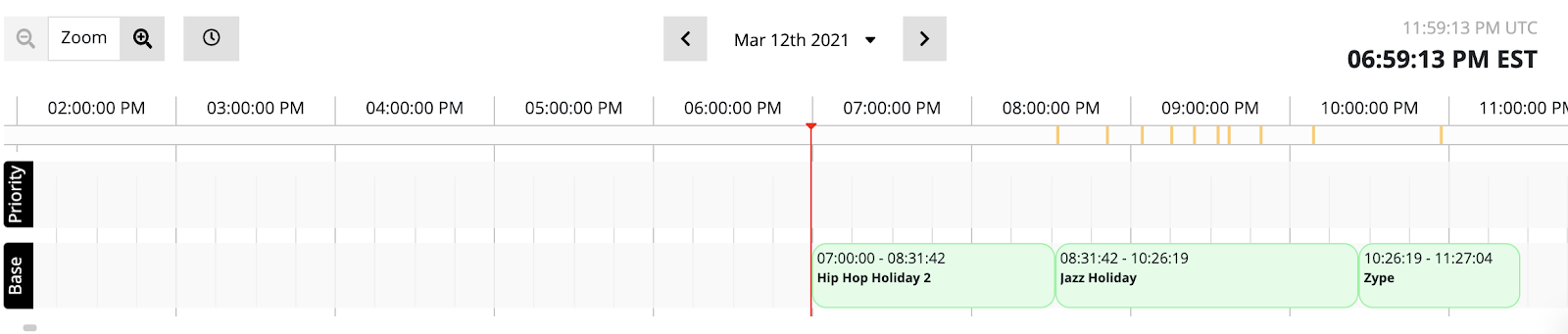

View in 1-hour segments, 15-minute hash marks:

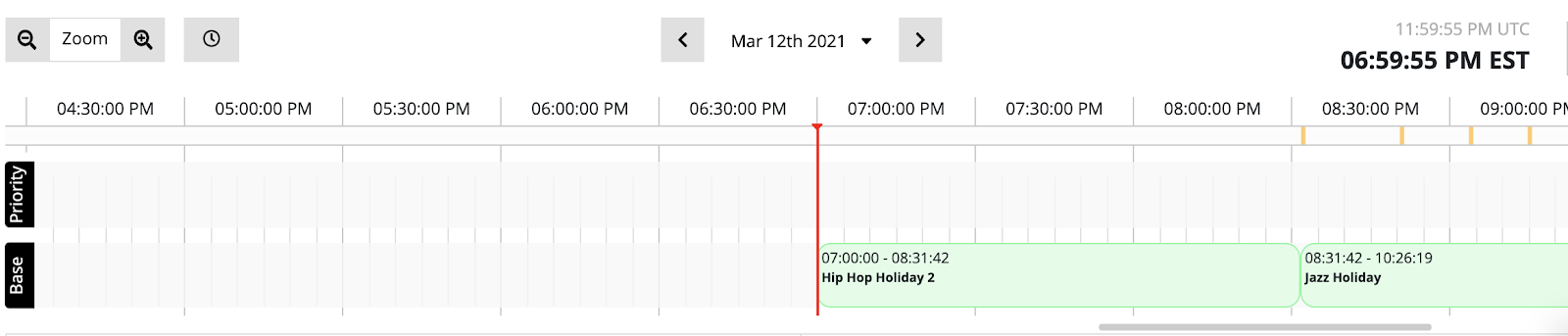

View in 30-minute segments, 5-minute hash marks:




View in 15-minute segments, 3-minute hash marks:

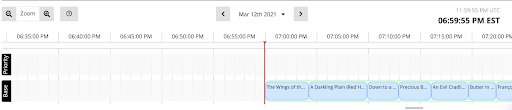

View in 5-minute segments, 1-minute hash marks:

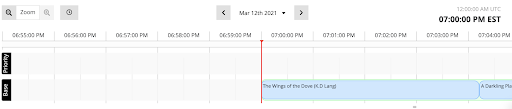

View in 1-minute segments, 30-second hash marks:
